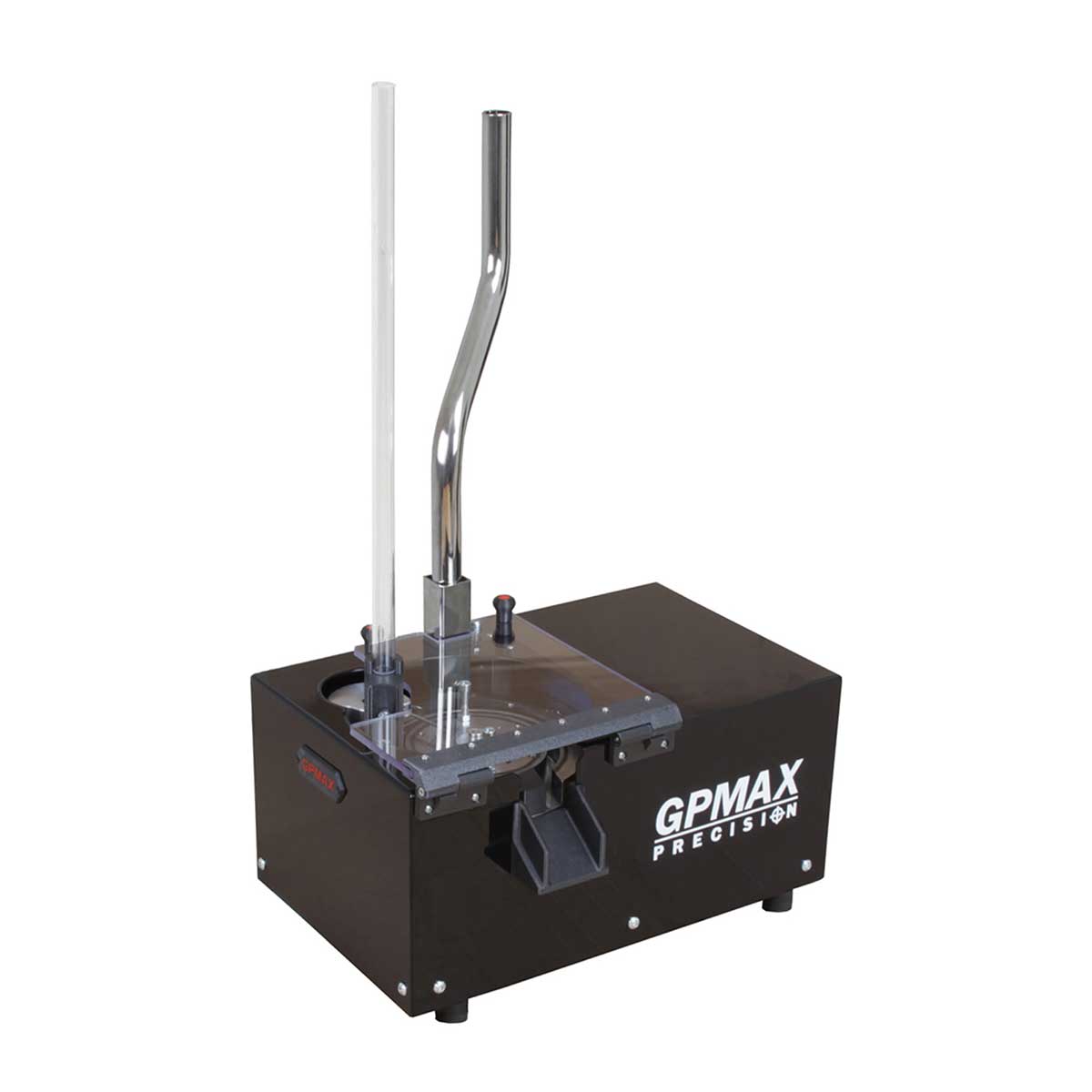

ROTARY RESIZER FOR 9mm CASINGS
Case resizer for 9mm cases with extremely high production capacity (up to 5400 cases/hour) 220V.
Carbon steel dies, CNC-machined, tempered, and ground.
Includes Case Feeder support (not included), internal lighting, and Plexiglass protection with a micro safety switch.
The Rolling Resizer can be easily configured for production rates of 900/1800/2700/3600/4500/5400 cases/hour.
Switching between calibers (e.g., from 9mm to .40) requires only replacing the rotor and the case entry tube, which takes less than 5 minutes.
The Rolling Resizer restores cases to their original size, recovering any bulges and ensuring CIP-compliant ammunition production.
The Rolling Resizer is not an alternative to the Resizing Die, as the latter can only resize the top part of the case.
For bulged cases, the best solution is the Rolling Resizer to resize the full length of the case.
The main advantage of the Rolling Resizer over axial resizers is its radial action, which preserves and strengthens the case structure, avoiding elongation stress, and it requires no lubrication.
Read more
Carbon steel dies, CNC-machined, tempered, and ground.
Includes Case Feeder support (not included), internal lighting, and Plexiglass protection with a micro safety switch.
The Rolling Resizer can be easily configured for production rates of 900/1800/2700/3600/4500/5400 cases/hour.
Switching between calibers (e.g., from 9mm to .40) requires only replacing the rotor and the case entry tube, which takes less than 5 minutes.
The Rolling Resizer restores cases to their original size, recovering any bulges and ensuring CIP-compliant ammunition production.
The Rolling Resizer is not an alternative to the Resizing Die, as the latter can only resize the top part of the case.
For bulged cases, the best solution is the Rolling Resizer to resize the full length of the case.
The main advantage of the Rolling Resizer over axial resizers is its radial action, which preserves and strengthens the case structure, avoiding elongation stress, and it requires no lubrication.

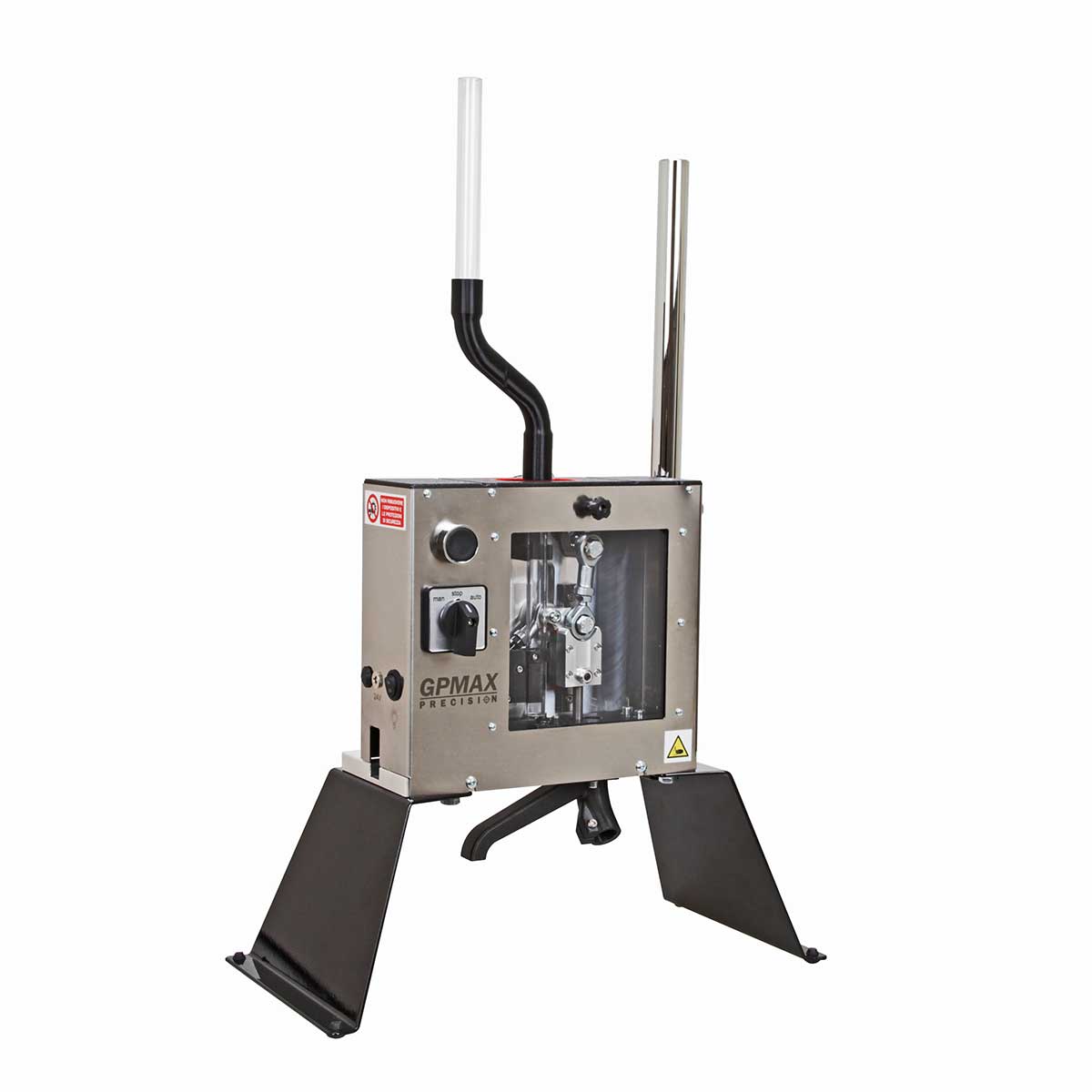

LINEAR DECAPSULATOR 30 RPM FOR 9 AND .40 CALIBER
GpMax Model STD Linear Decapsulator (30 RPM) for Cases.
Compatible with the following calibers:
.380
.38 Super Auto
9x19
9x21
40S&W
The decapsulator does not require component changes to switch between calibers.
Hourly output: 1800 cases.
All movements are supported by bearings or linear recirculating ball guides. It operates on a 24V power supply and includes internal lighting. The unit features total perimeter protection with an easily removable front inspection glass.
Equipped with:
Automatic/Off/Manual selector
Reverse activation button
Extractor pin made of hardened and ground steel, easily replaceable with an M3 screw.
The decapsulator includes an electronic fuse that cuts power to the motor in the event of a jam. The fuse can be easily reset by removing the incoming power supply.
The GpMax decapsulator comes with all necessary components for operation, except for the Case Feeder, which is sold separately
Recommended GpMax Models:
Case Feeder Slim 9mm and 40S&W
Code: ARP-CAS9-SLM220V

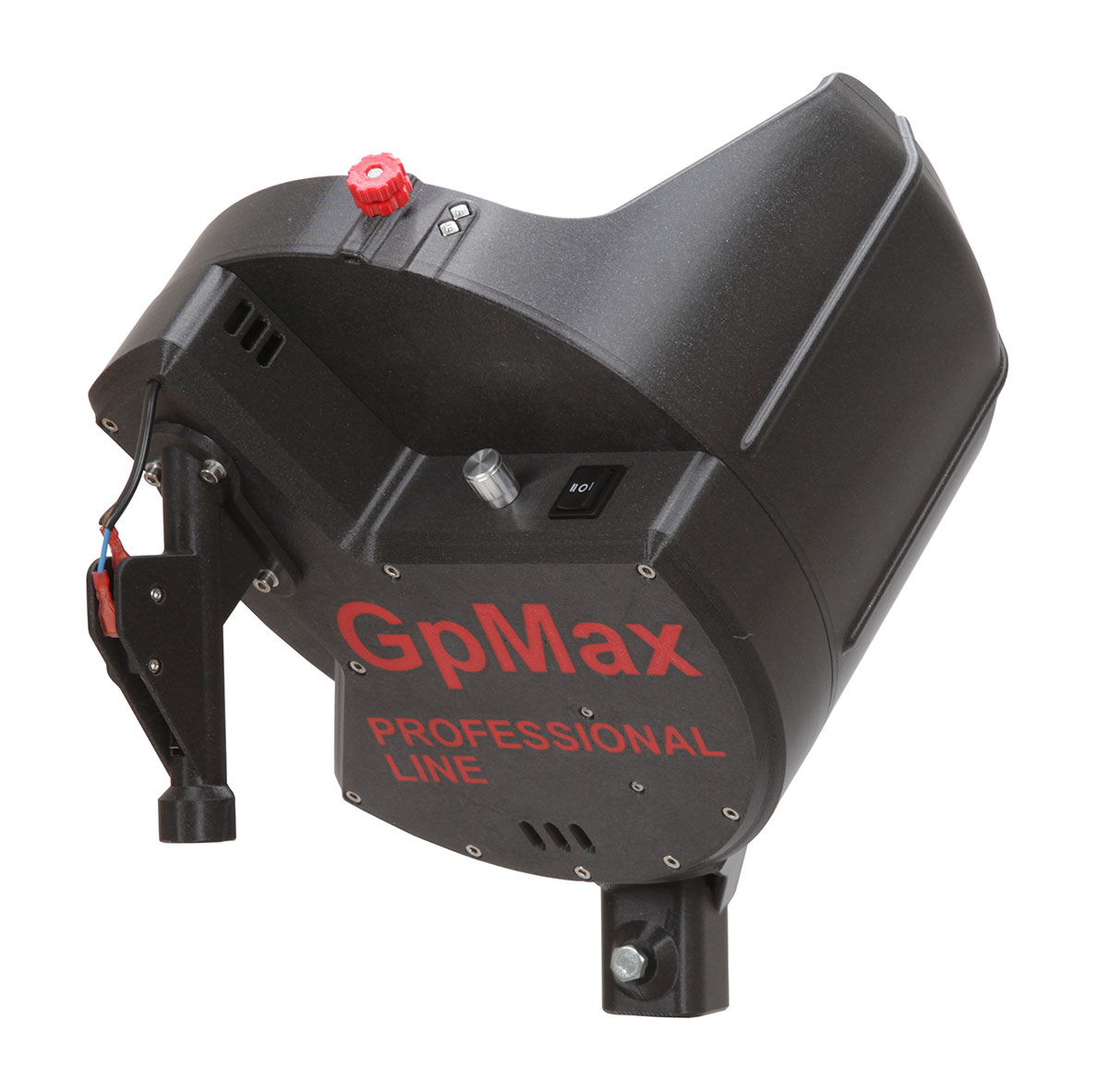

High Capacity Case Feeder 9mm and 40S&W
Code: ARP-CAS-940-MD
